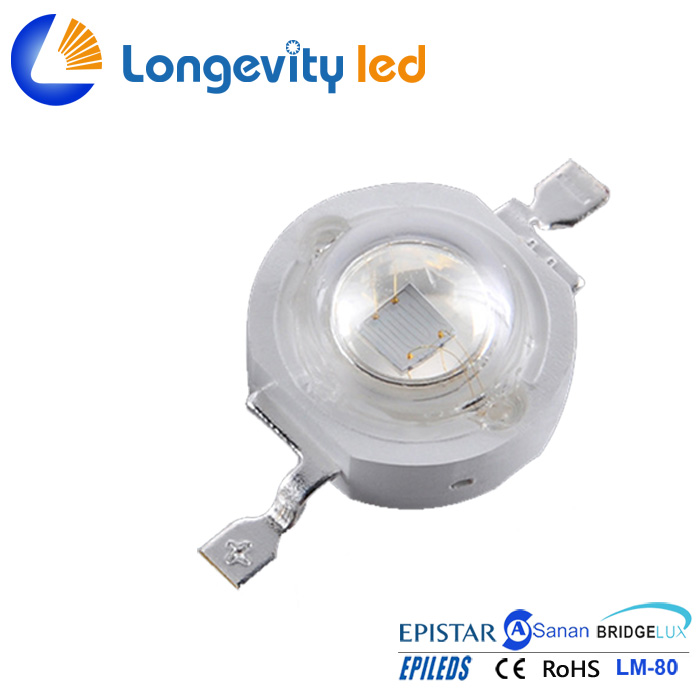

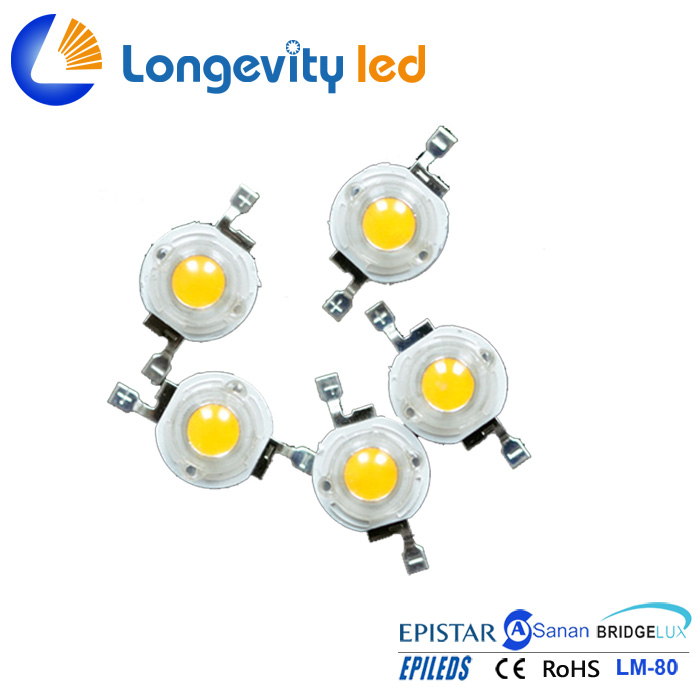

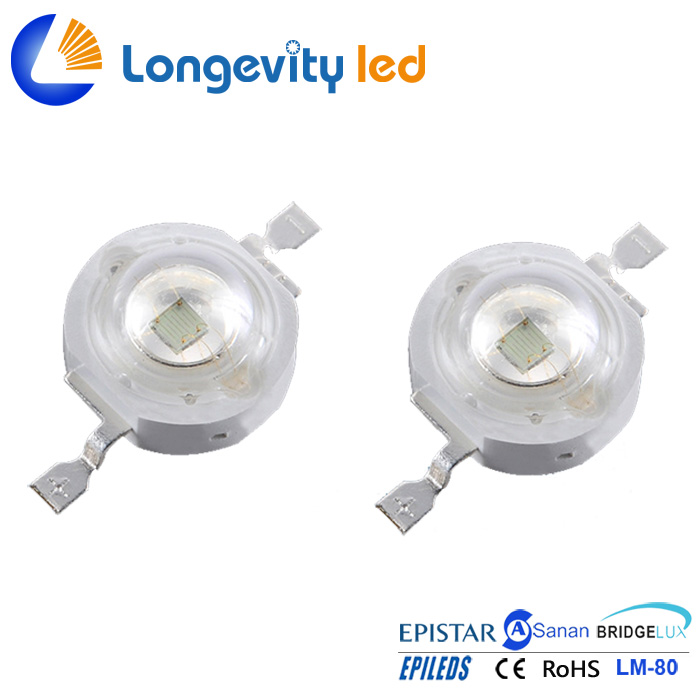

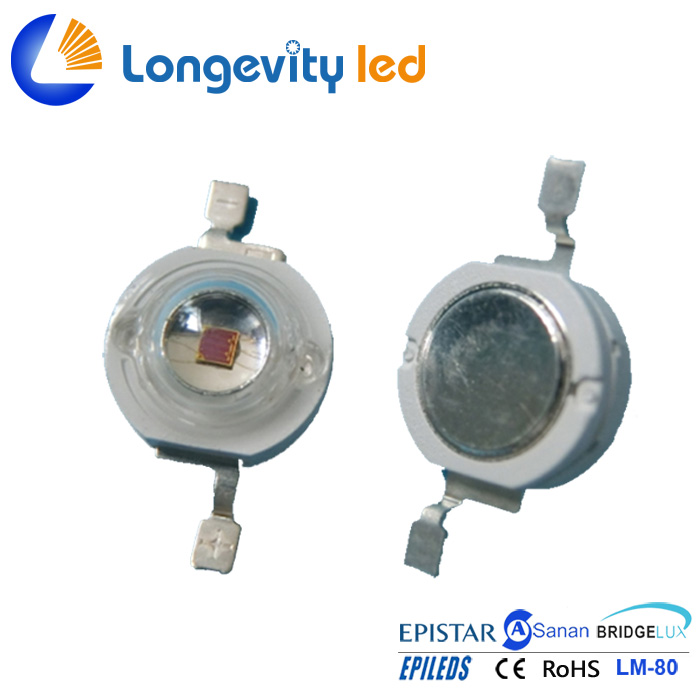

high power 1-3w blue color led
High photosynthetic efficiency, high cost performance
adopting pure gold thread, 99.99% copper holder
this product is widely used on LED street light and LED high bay light.
Description
Vertical radiating and low thermal resistance structure（Rthj-s≈20°c/w）
Good light uniformity, wide visual angle, high efficiency, high photosynthetic efficiency, high optical channel retention rate
Automatic integration of molding progress , technical maturity, stable performance, high cost effective
Pass LM80 life test certificate, product technical parameters are conform to EU ERP Standard
| Power (W) | Chip Brand | Chip Size(mil) | CCT(K) / WLD（nm） | Voltage(VF) | Current(mA) | Brightness (LM) / MCD） |
Note |
| 1/3W | EPILEDS | 35mil | 2700-7000K | 3.0-3.4V | 350mA/ 700mA |
100-110LM | 50PCS/reel |
| Epistar | 30mil | 110-120LM | |||||
| Epistar | 33mil | 120-130LM | |||||
| EPILEDS | 40mil | 120~130LM | |||||
| EPILEDS | 45mil | 130-140LM | |||||
| Bridgelux | 45mil | 130-150LM | |||||
| 1W Single color |
EPILEDS | 38mil | Red 620-630nm | 2.0-2.4V | 350mA | 50-60LM | 50PCS/reel |
| 38mil | Yellow 590-600nm | 40-50LM | |||||
| 40mil | Green 520-530/ 500-505 |
3.0-3.4V | 80-100LM | ||||
| 40mil | Blue 460-470/ 450-455 |
20-30LM | |||||
| 40mil | Purple 395-400/400-405/405-410 | 5-10lm | |||||
| 3W Single color |
EPILEDS | 42*42 | Red 620-630 | 2.0-2.4V | 700mA | 80-100LM | 50PCS/reel |
| Yellow 590-600 | 80-100LM | ||||||
| Orang 605-610 | 80-100LM | ||||||
| EPILEDS | 45*45 | Green 520-530/ 500-505 |
3.0-3.4V | 180-200LM | |||
| Blue 460-470/ 450-455 |
50~60LM | ||||||
| Purple 395-400/400-405/405-410 | 5-10LM | ||||||
| 1W/3W | EPILEDS | 30mil | Grow lamp 650~660nm |
3.0-3.4V | 350mA/ 700mA |
20-30LM | 50PCS/reel |
| 38mil | 20-30LM | ||||||
| 42mil | 50-60LM | ||||||
| 3W | 42mil | Camera IR 850nm/740nm | 700mA | IR | |||
| 3w | 45mil | 365nm | 700mA | UV 5~10lm |
